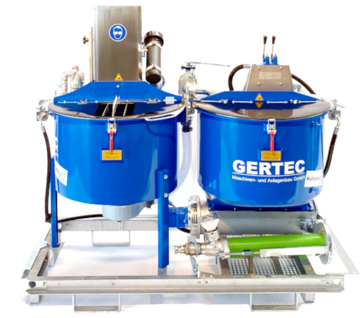

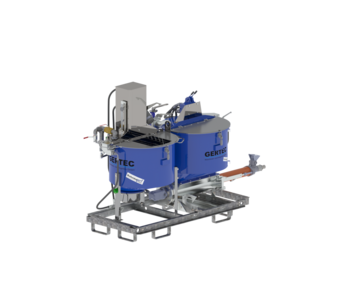

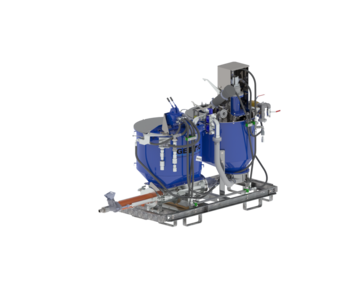

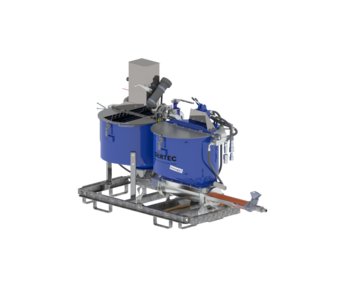

IS-35-H (hydraulic)
◀
▶
Technical Data / Performance Data
Mixing capacity (20 batches/h) | 3,0 | m³/h |
Effective mixer volume | 150 | l |
Mixing water minimum | 50 | l |
Mixer filling level (bag loading) | 1000 | mm |
Buffer tank volume | 200 | l |
Flow rate | 0-55 | l/min continuous |
Discharge pressure | max. 50 | bar |
Solids grain size | max. 2 | mm |
Pressure connection | VT 1“; type 25 | motar coupling VT 1“,alternatively 1“ IG |
Water connection | Storz C | 11/2“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling |
Cleaning connection | DN 25 | Geka-claw coupling |
Dynamic pressure leakage oil line | max. 1,5 | bar |
Required quantity of oil (on site) | 70 | l/min |
Required oil pressure (on site) | 180 | bar |
Transport dimensions | 1,62 x 0,82 x 1,6 | m ( L x W x H) |
Working dimensions | 2,21 x 0,82 x 1,6 | m ( L x W x H) |
Weight | approx.385 | kg |
Application areas:
- Geothermal application (peripheral filling for geothermal probes)
- Well construction (seal water sealing, backfilling)
- Tunnelling (delivery and injection of slurries, cavity filling)
- Special civil engineering (delivery and injection of slurries, cavity filling)
- Road works (delivery of drainage asphalt)
Mixing of:
- Cement slurries
- Filling materials for peripheral filling
- Bentonite slurries
- Mineral insulating slurries
- Fly ash slurries
- Anchor grout
