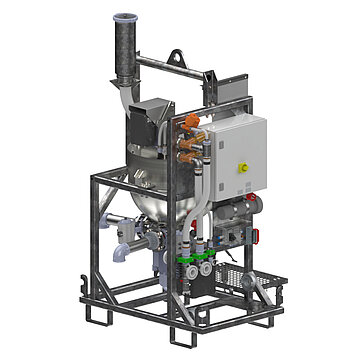

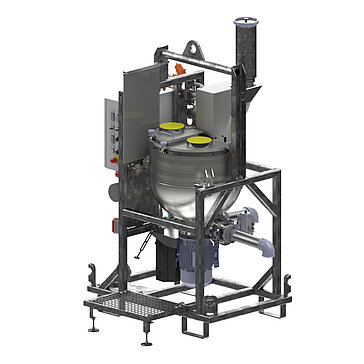

CIM-100-EA
Technical Data / Performance Data
Mixing capacity (10 batches/h) | 1,0 | m³/h |
Effective mixer volume. | 40 - 100 | l |
Mixing water minimum, approx. | 40 | l |
Mixer filling height, approx. | 1070 | mm (above pedestal) |
Solids grain size | max. 2 | mm |
Mixing components | 5 | 2 liquids (clear and recycled water) 2 solids 1 additive (liquefier, liquid) |
Water connection | 2 x Storz C | 11/2 “ standard coupling DIN 14307, max. 6 bar |
Cleaning connection | DN 25 | Geka coupling |
Mixer outlet | 2 x DN 65 | Pneumatic butterfly valve |
Clear water dosage | gravimetric | Rough/fine dosage (mixer scale) |
Recycled water dosage | gravimetric | Rough dosage (mixer scale) |
Solid(s) dosage - silo | gravimetric | Rough/fine dosage (mixer scale + screw conveyor speed regulation) |
Solid(s) dosage - bags | manually | mechn. Modification to bag emptying grid (no parallel silo operation) |
Liquid additive dosage | volumetric | Inductive measurement |
Pressurized air connection | NW 7,2 | Plug DIN EN ISO 228-1; 6 bar |
Electric power connection | CEE-Plug | 16 A, 5-pole |
Power intake | 6 | kW |
Voltage | 400 | V; 50 Hz |
Dimensions | 1200x800x2180 | m (L x W x H) |
Weight approx. | 375 | kg |
Mixing of:
- Cement slurries
- Binder slurries for insulating materials
- Bentonite slurries
- Anchor grout
- Fly ash slurries
- Anhydrite slurries Other solid-containing slurries (after technical clarification)
