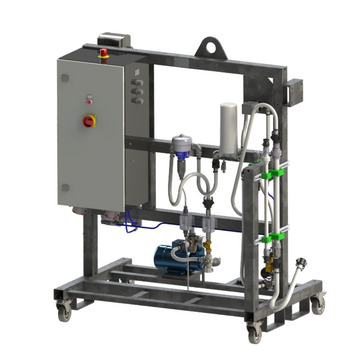

SG-50-EA

◀
▶

Technical Data / Performance Data

Foam output

10 - 50

1,2 – 3,0

l/min

m³/h

Foam density

 30 - 80

kg/m³; adjustable

Foaming agent rate

1,6 – 5,5

%; adjustable

Water connection

GEKA- coupling 3/4“

Line pressure ≥ 6bar

Water consumption

max. 4

l/min

Pressed air connection

Plug NW 7,2; ISO 228-1

Line pressure ≥ 6,0 bar

Pressed air consumption

max. 55

nl/min

Connection delivery hose foam

VT 1“

Mortar coupling

Power connection

16 A,

CEE-plug 5-pole with phase inverter

Power input

approx. 3,5

kW

Voltage

400

V; 50 Hz

Transport dimensions

1500 x 800 x 1730

mm (L x W x H)

Weight

 approx. 220

kg

The specified performance data are non-binding values that differ significantly depending on their respective product

Application areas:

  • Production of foam
  • Production of foam concrete screed
  • Production of light levelling mortar
  • Production of foam concrete stones
